Equipment Measurements

October 2002

American Acoustic Development 2001 Loudspeakers: Measurements

All  loudspeaker measurements are performed independently at the National Research Council of Canada. Please click to learn more about how we test loudspeakers there. All measurement data, including graphical information displayed below, is the property of SoundStage!. Reproduction in any format is not permitted.

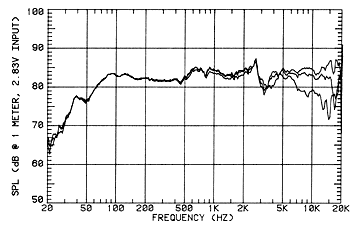

Chart 1 - Frequency Response and Sensitivity

Microphone measuring position: midpoint of woofer and tweeter, grille non-detachable

Frequency response, 20Hz - 20kHz (measured @ 2m, plotted @ 1m)
Loudspeaker sensitivity (averaged 300Hz - 3kHz, 2.83V/1m)

Top curve: on-axis response
Middle curve: 15 degrees off-axis response
Bottom curve: 30 degrees off-axis response
Sensitivity: 83.0dB

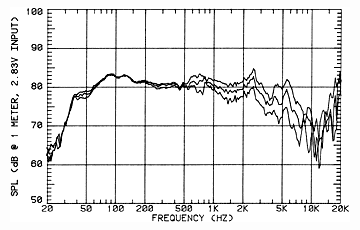

Frequency response, 20Hz - 20kHz (measured @ 2m, plotted @ 1m)

Top curve: 45 degrees off-axis response
Middle curve: 60 degrees off-axis response
Bottom curve: 75 degrees off-axis response

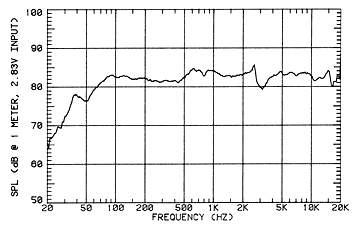

Chart 2 - Listening Window

Listening Window, 20Hz - 20kHz (measured @ 2m, plotted @ 1m)

Response curve is an average of five measurements:
on-axis, 15 degrees left and right off-axis,
15 degrees up and down off-axis

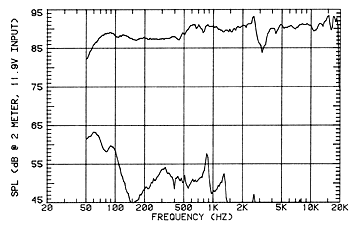

Chart 3 - Total Harmonic Distortion + Noise

THD+N @ 90dB, 50Hz - 10kHz (measured @ 2m)

Top curve: frequency response @ 90dB SPL
Bottom curve: THD+N @ 90dB (50Hz - 10kHz)

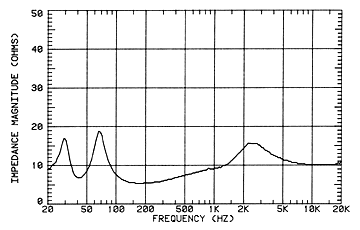

Chart 4 - Impedance Magnitude Variation and Electrical Phase

Impedance curve

Vertical axis: impedance
Horizontal axis: frequency

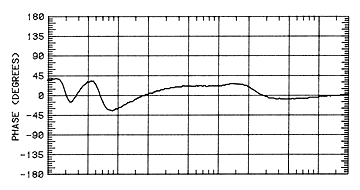

Electrical phase

Vertical axis: phase
Horizontal axis: frequency
