Equipment Measurements

March 2009

Phiaton Moderna MS 400 Headphones: Measurements

All headphone-measurement graphs and data are supplied by HeadRoom Corporation. Click here to learn about HeadRoom's testing of headphones, and here for information on interpreting these measurements.

All measurement data and graphical information displayed below are the property of HeadRoom Corporation, SoundStage!, and Schneider Publishing Inc. Reproduction in any format is not permitted.

Additional Data
  • Volts RMS to produce 90dB SPL: 0.035

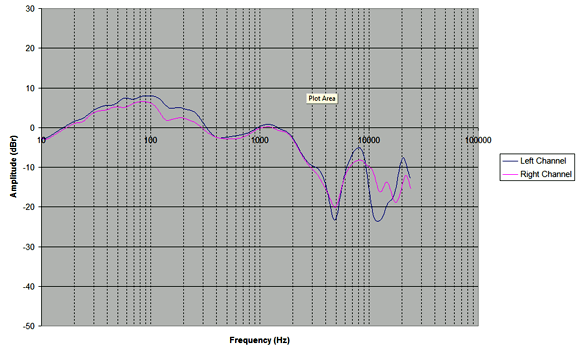

Chart 1 - Frequency Response

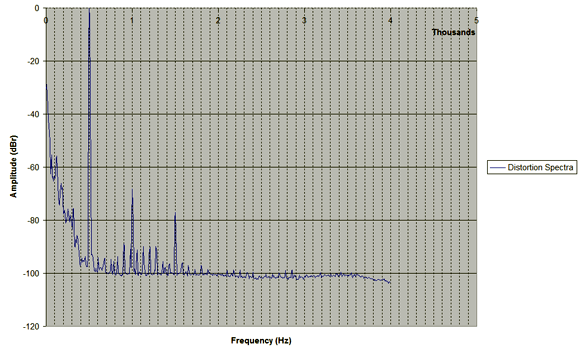

Chart 2 - Harmonic Distortion at 500Hz

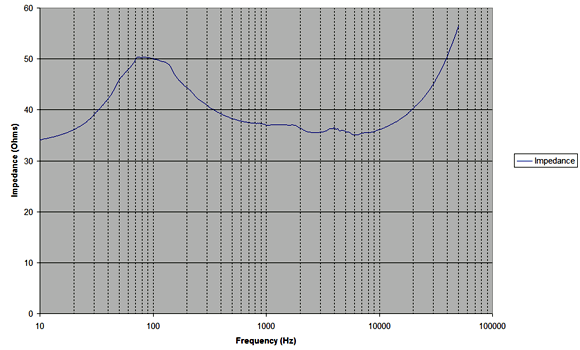

Chart 3 - Impedance Versus Frequency

Chart 4 - Isolation Response
