Convergent Audio Technology SL1 Legend
by Marc Mickelson
|"The SL1 Legend's
line stage has the uncanny ability to delineate musical parts while at the same time conveying
a powerful, resounding whole." "The music flowed with both naturalness and acute
precision." "Bass had crunching heft when it was on the recording, while cymbals,
triangles and brass overtones had what can best be described as residence in the soundfield --
the antithesis of wispiness that seems to be more decay than attack." The phono stage
"was so pure and natural, so truly neutral, that it essentially mirrored the preamp's
line stage, even with the extra tubes and transformer in the circuit." "I always
felt great anticipation when returning to listen to the SL1 Legend, this becoming with time
contentment, and then admiration."
implementation" -- "'a whole bunch of little-betters put together.'" "The
Legend's 46-position shunt volume controls are more costly than those used for the standard
SL1," and its "Black Gate graphite-particle caps...cost ten to twenty times more and
are no longer in production." Circuit boards are made of Teflon. "The Legend has the
same tubes in its line and phono stages: a matched pair of 6922s, a single 6922, and a matched
pair of 12AX7s." "The Legend's optional phono stage uses a special low-gain step-up
transformer in conjunction with an initial moving-magnet stage to deliver 58dB of gain."
|"As with previous
CAT preamps, the Legend's line stage provides a lot of gain -- 26dB -- but unlike with its
predecessors, gain is adjustable via a switch inside the control unit, which reduces it to
15dB. The SL1 Legend arrives set for 26dB of gain. If you hear hiss through your speakers,
reducing the gain should do away with it."
|"If it takes years
of tinkering to produce a preamp like this one, so be it. Greatness, as they say, can't be
Time marches on, and audio products of all kinds
get better and better -- the opinion of cynics notwithstanding. There are many reasons for
this steady improvement, including better parts and manufacturing techniques, but I think
the driving force behind the continual forward movement of audio performance lies in
people, specifically those who design the speakers, amplifiers and CD players we
audiophiles can't live without. Think about it: Aren't you better at your job now than you
were when you started? If you've been promoted, you have concrete proof of your improved
performance. Why should it be any different for someone who designs audio circuits,
especially when that person has been at it for decades?
It's not. Speakers, amplifiers, CD players and
the like are refined over time. This, along with improved parts, makes for products that
push with even greater force at the boundaries of reproduced sound. There may be no better
example of this than the Convergent Audio Technology -- CAT for short -- SL1 preamp.
Introduced 25 years ago, it has been tweaked and updated numerous times since. I owned one
more than a dozen years ago, and I swear I could hear a difference between the unit I
auditioned prior to purchase and the one I eventually bought. I blame this on Ken Stevens,
who for those two-plus decades has never said, "I can do no better." Even though
the basic circuit of his SL1 hasn't gone through wholesale change, Ken has, adding to his
mental database of passive parts and picking the best of them for use in his preamp -- and
It is curious, however, that while Ken continued
to make his initial product better, he designed and built an exceedingly small number of
completely new products. Then, a couple of years ago, the SL1 Legend preamp was born --
well, sort of. We first covered it at the Munich High End show in 2004, and then again at
CES in 2006. In 2007, it was finally released for sale. I can't say for sure, but I
suspect that tweaking ensued over the course of this time and probably up to the point
where I received a Legend for review late in 2008.
As Ken explains it, "My equipment is a whole
bunch of little-betters put together." And, naturally, it takes time to discover what
all those "little-betters" are.
What becomes a Legend most
Ken is a gregarious fellow who embodies a pair of
disciplines that don't easily or naturally go together. On the one hand, he's a
college-trained electrical engineer who worked for a high-tech company before starting
CAT; at one point, he built every CAT product himself. On the other hand, he's an astute
audiophile who trusts his ears when it comes to making many decisions regarding the
ultimate form his products will take. Ken has listened to more resistors -- "50 to
100 brands" by his recollection -- than most people know exist. He makes his own
nonelectrolytic capacitors because he couldn't find a commercial cap whose sound he liked.
How many audio companies make their own caps? Only a few. Even big companies with the
financial resources to do it rely on off-the-shelf parts. Not CAT. Ken Stevens'
independence of mind is equaled only by his technical knowledge -- and hearing -- and he
uses both in identifying and selecting the best parts for his products.
The SL1 Legend ($19,950 USD with phono stage,
$16,950 without) takes this uncompromising approach further than the product with which
Ken literally started the company, the SL1 preamp, now in its Renaissance version ($9950
with phono stage and $7950 without). The two use essentially the same circuit, but in the
case of the Legend that circuit is taken to the extreme -- it's a cost-no-object

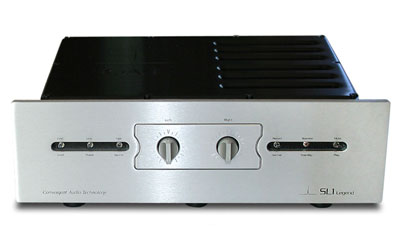

implementation. On the outside, the two look nearly identical, but there are a couple of
notable differences. Chief among these is the use of dual volume controls in the Legend
instead of separate volume and balance. Both preamps use stepped volume controls,
essentially a set of resistors for each setting, but the Legend's 46-position shunt volume
controls are more costly than those used for the standard SL1, whose fewer positions cause
issues for some owners, as the perfect volume setting can sometimes lie between two
"clicks." Not with the Legend; 46 positions should be enough for even the
Ken Stevens is also a great believer in
controlling resonance through physical means, which is why the top and bottom plates of
the Legend are made of a layer of steel overlaid with a layer of machined aluminum. This
is in addition to the preamp's steel chassis and the liberal use of a resistive damping
compound inside. The standard SL1 and the Legend measure the same -- 19"W x 5
1/4"H x 12 1/4"D for the main chassis and 12 1/4"W x 4"H x 6"D
for the connected power supply -- but the Legend weighs even more: about 80 pounds. The
top and bottom look like they're armor, but they make for an incredibly solid piece of
audio gear -- like a cinder block filled with cement.
Inside is where the difference in price between
the two preamps is most apparent. The circuit boards for the standard SL1 are made of
G200, a material that's far more expensive than the substrate that's used for most circuit
boards. In the Legend, it's Teflon, which is "a lot more expensive" than G200,
according to Ken. Electrolytic caps are replaced with Black Gate graphite-particle caps
that cost ten to twenty times more and are no longer in production. "They are so
much better than other electrolytics," Ken told me, touting their "organic
sound." "And you can hear them very clearly in the Legend," he said. He has
instant recall of hundreds, maybe thousands of passive parts whose intrinsic sound he
The Legend's optional phono stage uses a special
low-gain step-up transformer in conjunction with an initial moving-magnet stage to deliver
58dB of gain. The transformer can be set for an additional 6dB of gain, but this is only
recommended for cartridges whose internal impedance is under 10 ohms. Because of its low
gain, the transformer's response is much flatter than that of others -- drifting less than
0.02dB from 20Hz to 20kHz. It also features unmeasurable amounts of distortion and a very
high 4200-ohm input impedance. Cartridge loading is accomplished with RCA plugs included
with the preamp.
Like earlier SL1 models, the Legend is fully
single ended. There is no multi-pole input selector. Instead, there are high-grade toggle
switches to choose among the four inputs (two line, one phono or line, and one tape)
because Ken thinks the switches sound better. The Legend has the same tubes in its line
and phono stages: a matched pair of 6922s, a single 6922, and a matched pair of 12AX7s. As
with previous CAT preamps, the Legend's line stage provides a lot of gain -- 26dB -- but
unlike with its predecessors, gain is adjustable via a switch inside the control unit,
which reduces it to 15dB. The SL1 Legend arrives set for 26dB of gain. If you hear hiss
through your speakers, reducing the gain should do away with it.

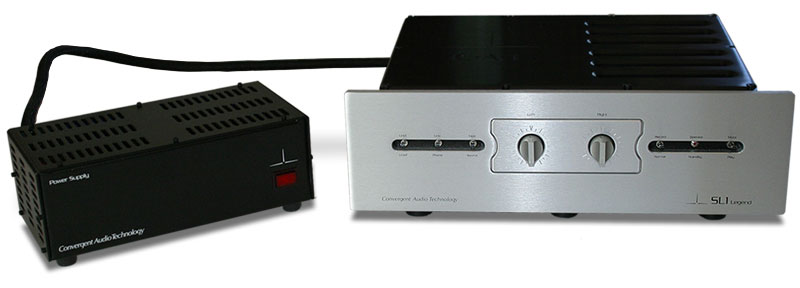

The Legend's separate power supply also uses
Black Gate caps and the same CAT-designed isolation transformer as the standard SL1. It's
because of the isolation transformer that Ken cautions against using any power conditioner
with his preamps, and he includes a beefy power cord along with each unit. The power
supply is permanently connected to the control unit, which makes putting the preamp on
anything but the top shelf of your equipment rack a feat of strength and dexterity. The
umbilical is long enough that you can easily hide the power supply in an out-of-the-way
spot and not have it occupy another shelf.
The Legend, like the standard SL1, has no remote
control. Before you consider this a rash oversight and deal-breaker, give it a try with
your existing preamp by hiding the remote or taking the batteries out. It becomes a trifle
in no time, especially when you are listening attentively. It's far more bothersome to
deal with the Legend's dual volume controls, though simply counting the clicks when you
adjust one solves that. Once I found a good spot, I moved up or down a maximum of three
Any given configuration of my system is heavily
biased toward balanced electronics, especially when the Audio Research Reference 3 preamp
is at the center of things. Ken Stevens, in contrast, designs single-ended circuits
exclusively, believing that any theoretical sonic improvement of a balanced circuit is
offset by its added complexity, parts count and cost. Fully balanced digital sources, for
instance, always sound their best from their XLR outputs, and that's how I've always used
them. Thus, using them with the CAT preamp would mean essentially changing two system
variables at a time -- and getting skewed results.
But I made do, pairing the SL1 Legend with
sources and amplifiers that were single ended and whose sound I knew well. Amplifiers were
the CAT JL3 Signature Mk 2, Lamm M1.2 Reference and ML3 Signature, and Raysonic M100
monoblocks. The primary digital source was the Zanden Model 2000P transport and Model
5000S DAC connected via their I2S cable. I also used an Ayre C-5xe universal
player and Audio Research Reference CD8 CD player. Preamps for comparison were an Audio
Research Reference 3, which can be used single ended, and an Aurum Acoustics CDP, which
doubles as a high-quality CD player. Speakers were Wilson Audio MAXX Series 2s and Series
3s, with a pair of Raidho Ayra 3.0s in between.
LPs spun on a TW-Acustic Raven AC turntable with
two tonearms: a Graham B-44 Phantom for mono playback and a Tri-Planar Mk VII UII for
stereo. Cartridges were mono and stereo versions of the Dynavector XV-1s. Phono stages
were the internal one for the Aurum Acoustics CDP, and the outboard Audio Research PH7 and
Lamm LP2 Deluxe. I tricked out the turntable with a Harmonic Resolution Systems (HRS)
Analog Disk record clamp/weight, an HRS Nimbus Coupler and two Spacers under the motor,
and a Boston Audio Mat 2 record mat.
Preamps, phono stages, the turntable and the
single-box digital players all rested on a Silent Running Audio Craz 4 Reference equipment
rack. The Lamm amps had dedicated pairs of Silent Running Audio products underneath:
Virginia-Class platforms for the Lamm ML3s and Ohio Class XL Plus2 platforms
for the M1.2s. The Zanden digital separates rested on HRS M3 isolation bases.
Interconnects and speaker cables were AudioQuest
William E. Low Signature or Shunyata Research Aurora-IC and Aurora-SP. A Shunyata Research
Hydra V-Ray -- both the original and Version II -- and a number of Shunyata Anaconda
Helix and Python Helix power cords -- both Alpha and Vx versions -- handled power duties,
trading time with an Essential Sound Products Essence Reference power distributor and a
number of Essence Reference power cords. I also used the hefty power cord included with
the SL1 Legend. Phono cables were an AudioQuest LeoPard used with the Graham tonearm and
the Cardas-sourced cable that's integral to the Tri-Planar tonearm.
Setting up a turntable for use with the Legend's
phono stage takes a little experimentation if you're using a high-quality low-output
moving-coil cartridge. Given the price of the Legend, you are almost certainly going to
use such a cartridge. The step-up transformer's very high impedance means that you may
have to load down your cartridge more than usual in order to effect a natural spectral
balance that's not too heavy on the treble. CAT includes five different values of loading
plugs (20, 50, 100, 150 and 300 ohms), so experimentation is easy.
I initially settled on 300 ohms with my
Dynavector cartridges and grew accustomed to the sound. A few weeks later, Ken Stevens
visited and suggested removing the plugs completely and running the phono stage "wide
open," with no loading. At first, this sounded bright to me. I kidded Ken that he had
discovered "an old-ears compensation circuit" that remedied age-related hearing
loss. But Ken's suggestion proved to be a very good one. The no-load option sounded more
energetic, open and spacious than 300-ohm loading, differentiating each recording better.
Give no loading a try, even if the maker of your cartridge recommends some specific value.
You just might like it.
I reviewed the SL1 Ultimate Mk 2 almost two years
ago, and it made quite an impression on me. Still, keeping that impression firmly in mind,
I can say that the SL1 Legend is much more than a mere upgrade, its overall sound
improving on the Ultimate Mk 2 in a number of ways -- and on other top-level preamps I've
heard as well.
The SL1 Legend's line stage has the uncanny
ability to delineate musical parts while at the same time conveying a powerful, resounding
whole that is honest to the recording's scale, whether impossibly large or pinpoint small.
This is the aural canvas on which the rest of the Legend's performance is drawn, and it's
a significant sonic achievement, combining high resolution with an organic musical nature
and making for carefree listening. Bruce Springsteen's best recent album is We Shall
Overcome: The Seeger Sessions (Columbia 82867 2), a DualDisc whose DVD side registers
at CD resolution but may, in fact, be slightly more high rez, as it sounds a bit better
than the CD side. The SL1 Legend made the difference plain, even via a balanced Ayre C-5xe
used single ended. The music is loosely played and the recording is nothing special; the
sheen of a grandiose production would ruin the music's old-as-the-hills patina. Its
freewheeling nature was well served by the SL1 Legend, through which the music flowed with
both naturalness and acute precision.
As mentioned, there was also a feeling of power
to the Legend's sound, not an additive sense of midbass weight, for instance, but a
solidity from its limits at both ends of the musical spectrum. Bass had crunching heft
when it was on the recording, while cymbals, triangles and brass overtones had what can
best be described as residence in the soundfield -- the antithesis of wispiness that seems
to be more decay than attack. Dynamic expressiveness was resolute and complete, with the
Legend showing a fiery way with big swings in volume and dexterity with smaller changes
from single instruments. From symphony orchestra to solo guitar, the SL1 Legend proved its
mettle throughout the frequency and dynamic spectrums.
One area in which digital generally shows its
superiority to vinyl is the bass, which on otherwise identical recordings seems to go a
bit -- or quite a bit -- lower and sounds more variegated from recording to recording.
Analog, on the other hand, often outlines an upright bass, for instance, far better,
differentiating it from the kick drum and other instruments that flit into and out of its
frequency range. A recording that illustrates all of this is Talking Heads Stop Making
Sense, whose low end throbs on both the LP (Sire W1-25186) and CD (Sire 25186-2). It
sounds more detailed on LP -- better outlined from the rest of the music -- and more
visceral on the CD. It takes a special audio system to reveal this distinction, especially
while not sounding etched in the upper midrange and treble. The SL1 Legend will never be
the part of the system that congeals the low frequencies into an amorphous mass or do
anything but lay out the midrange and treble with endearing smoothness and, when called
for, physicality. Einstein's The Tube preamp that I reviewed three years ago had
tremendous, and tremendously apparent, bass. The Legend's low frequencies are more
self-effacing, expertly integrated into the rest of the musical spectrum, and it offers
greater presence throughout the midrange and treble too.
As you might guess, therefore, showiness is not
the SL1 Legend's bag -- the Einstein preamp is far more extroverted and
attention-grabbing. Instead, the Legend's great resolving power comes from within, its
poise and naturalness never secondary -- or primary -- to the display of musical detail.
Everything is in proportion. To my ears, this is the absolute ideal: for the music never
to be overshadowed by the components that reproduce it, and for those components to be truly
neutral -- showing no tendencies of their own. This is what's so appealing about the very
best analog playback: the tremendous capability of a turntable-tonearm-cartridge system to
convey huge amounts of detail, always presenting it within the fabric of the music itself.
This provides a useful segue to discussion of the
SL1 Legend's phono stage, which does the two jobs that it should: provide lots of gain and
do so with a minimum of noise. My Dynavector cartridges are firmly in the low-output camp,
so they tax a phono stage's gain and noise capabilities, clearly revealing any issues. In
terms of the mechanics of the phono stage's handling of the tiny signal coming from the
cartridges, the Legend's low-gain step-up transformer did the job without drama. Its sound
was so pure and natural, so truly neutral, that the phono stage essentially mirrored the
preamp's line stage, even with the extra tubes and transformer in the circuit.
I spent far too much money at CES this year on
vinyl, most of it at the Classic Records booth at THE Show. While Music Matters deservedly
gets nearly endless praise for its Blue Note reissues, Classic Records' LPs don't get
nearly the recognition they deserve, especially the mono titles, which have sounded
uniformly wonderful. The sleeves are brightly reproduced and substantial too. Classic
Records was sold out of the Sonny Rollins classic Volume 2 (Blue Note/Classic
Records 1558), but I tracked down a copy online, and it was worth all of the digging. What
a glorious mono title: an all-star lineup, including a young and fiery Rollins' trading
notes with a young and exploratory Thelonious Monk, making music that can rightly be
called historic. An original of this LP would cost far more than the Classic reissue, and
through the Legend's phono stage it would sound brighter and crisper -- it wasn't produced
for such high-fidelity playback equipment. The reissue, however, sounded well balanced and
big, my mono cartridge conveying the luscious directness of mono playback, making a
case for this being the very best way to hear this music.
Ditto for the contribution, or lack thereof, of
the Legend's phono stage, a well-spent $3000, I can assure you. In fact, if Ken Stevens
decided to offer this phono stage as a separate product, perhaps with a burly chassis like
that of the SL1 Legend, including an outboard power supply, he could charge the
five-figure price of an elite separate phono stage and get it. If you contemplate buying
an SL1 Legend, buy the phono stage too, even if you're all digital. If it doesn't provide
the impetus for some analog experimentation, it will surely add to the value of your
preamp. It's a bargain.
Different is different; better is better
The ideal comparison product for the SL1 Legend
is the current version of the standard SL1, the SL1 Renaissance. While I have an entire
review from which to draw conclusions about the SL1 Ultimate Mk 2, for instance, it has
been such a long time since I heard that preamp that I can't make useful comments about
its sound versus that of the Legend. I can say that I think the two sound similar in broad
ways, with the Legend's Black Gate caps giving it a smoother though no less detailed
character, but beyond that I would be speculating. If I can pry an SL1 Renaissance from
CAT, I promise to write a follow-up review that talks about both preamps in depth.
Fortunately, I did have two very good preamps on
hand that I could compare to the Legend, though I would have to take into account some
broad differences among all three units. The Aurum Acoustics CDP ($16,000 with optional
phono stage), for instance, is a solid-state line-stage preamp with single-ended and
balanced inputs and outputs, but it is not fully balanced itself. It is also a very good
top-loading CD player with volume control. Like the SL1 Legend, the Audio Research
Reference 3 ($9995) uses tubes, but it's fully balanced. While it does have single-ended
inputs and outputs, it sounds its best balanced.
The Lamm monoblocks I had on hand have both
single-ended RCA and balanced XLR inputs. However, the M1.2 Reference amps have such high
gain that they only produce hiss-free sound with the CAT Legend when the preamp's gain is
reduced. The amps sound very good with the Reference 3, however. The Lamm ML3 Signature
amps, on the other hand, sound wonderful with the CAT preamp at full gain but somewhat
dark with the Reference 3, which switching from the 4- to the 8-ohm outputs on the amps
ameliorates to a great degree. The Aurum CDP works well and sounds very good with both
amps. I offer all this as background to my comments. I had to construct my impressions
based on combinations of amps and preamp, instead of merely swapping out preamps.
The strengths of the Reference 3 are its dynamic
prowess -- the realistic way it scales with the music as dynamics change -- and its rich
tonal palette, which gives instruments natural color. The SL1 Legend equals it in both of
these areas, and betters it in terms of conveying fine detail and bass power. The
overtones heard on well-recorded jazz, such as Bruce Barth's Live at the Village
Vanguard CD (MaxJazz MXJ 205), seem more abundant, though that's not actually the
case. They just don't recede as early, becoming mixed with the fine gauze at the very
threshold of the Reference 3's noise floor. Down low, the SL1 Legend conveys slightly more
depth and weight, adding some punch to the kick drum of Keith Richards' Main Offender
CD (Virgin 86499 2), for instance. The Reference 3 sounded a touch sweeter in the upper
midrange, smoothing over an almost infinitesimal bit of amusical hash from poor digital
recordings, but the SL1 Legend was probably more accurate, letting more of each disc's
The Aurum Acoustics CDP sounded thinner and
slightly brighter than the Legend, though no more fleet into and out of each note, for
instance. It also didn't have the palpability of the CAT preamp from the midrange down or
its bass power. The Legend sounded fuller and more vivid throughout the midrange, and its
bass displayed greater ambience when it was on recordings -- like Main Offender.
The bass of the Aurum CDP was leaner and tighter, though it lacked the more realistic
weight and spread of the CAT preamp's low frequencies.
I did do some direct comparison of the Legend's
phono stage to the Audio Research PH7 ($5995) and Lamm LP2 Deluxe ($7290). The PH7 derives
all of its gain from active devices, while the CAT and Lamm phono stages use active
devices and step-up transformers. They are very slightly quieter than the PH7, as I would
expect, but they don't quite convey the PH7's sense of space, which is one of its
strengths. The CAT phono stage is more resolute in its way with musical detail, voices
especially sounding more corporeal. The Lamm LP2 Deluxe is somewhere between the two,
presenting an airy soundstage and full images. The Legend's phono stage is a split hair
more quiet than the LP2 Deluxe, somewhat more dynamic, definitely more colorful, and
clearly more bold, especially with recordings that are quiet, dynamic, colorful and bold.
What all of this parsing of similarities and
differences proves is that the SL1 Legend has both analog and digital covered with equal
acuity. Comparing preamps with different amps can make your head spin, but I always felt
great anticipation when returning to listen to the SL1 Legend, this becoming with time
contentment, and then admiration.
"A whole bunch of little-betters put
Convergent Audio Technology's low profile belies
the state-of-the-art sonic performance of its products, which are the outgrowth of the
energy and astute hearing of Ken Stevens. I've now heard three of Ken's products -- he
currently makes only four -- and each has impressed me with the way it gets the best out
of its tube-based circuits while displaying none of the drawbacks that lesser products can
and do. I raved about the SL1 Ultimate Mk 2 preamp and JL2 Signature Mk 2 amp, but the SL1
Legend goes beyond them, not only in its execution but in its performance as well. There
is honesty, beauty and authority in the Legend's sound, and seemingly in equal parts. Yet,
as Ken Stevens espouses, it's the cumulative effect of a lot of things that makes the
Legend what it is.
Given its many and varied strengths, the CAT SL1
Legend is the finest preamp I've had in my system. If it takes years of tinkering to
produce a preamp like this one, so be it. Greatness, as they say, can't be rushed.
|Convergent Audio Technology SL1 Legend
Prices: $19,950 USD with internal phono stage, $16,950 for line stage only.
Warranty: Three years parts and labor.
Convergent Audio Technology
85 High Tech Drive
Rush, NY 14543
Phone: (585) 359-2700
